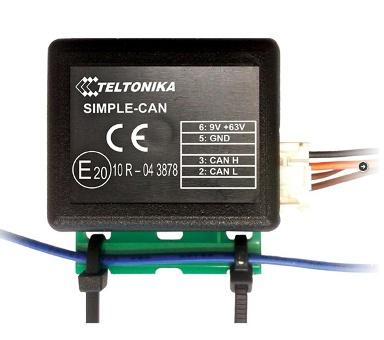

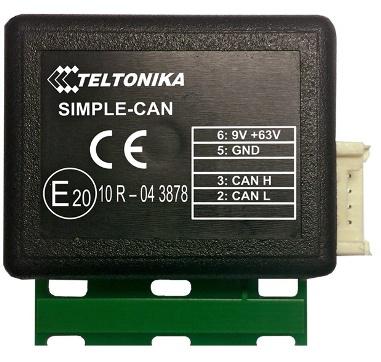

SIMPLE-CAN Teltonika σύνδεση OBD II με το LV-CAN200 & LV-CAN300

• SIMPLE-CAN collects vehicle data from CAN bus without damaging the wires
• Powered from on-board power source
• Reads the signals through the isolation of CAN bus wires
• Easy to install and operate
• LED indication for working modes
• SIMPLE-CAN can be used in conjunction with the LV-CAN200 or ALL-CAN300
• SIMPLE-CAN can be used with FM5300 and FM6320 to read FMS J1939 data
• If LV-CAN200 or ALL-CAN300 connection requires two CAN lines to get all data, then you need two SIMPLE-CAN readers
• Vehicle manufacturer’s warranty is not violated!
• Power supply voltage 9-63 V
• Power supply current:

• CAN-BUS speeds from 33,33 to 500 kb/s
• Automatically sets CAN Low, CAN High polarity
• Automatically adjusts signal level and speed

Πατήστε εδώ για να κατεβάσετε τo flyer στα Αγγλικά

Πατήστε εδώ για να κατεβάσετε το user Manual στα αγγλικά
