Teltonika AKF301 FM Tracker Uninterruptible Power Supply
Professional waterproof detection set with waiting for 6 months.

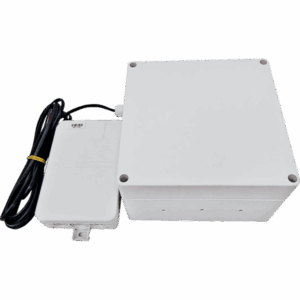

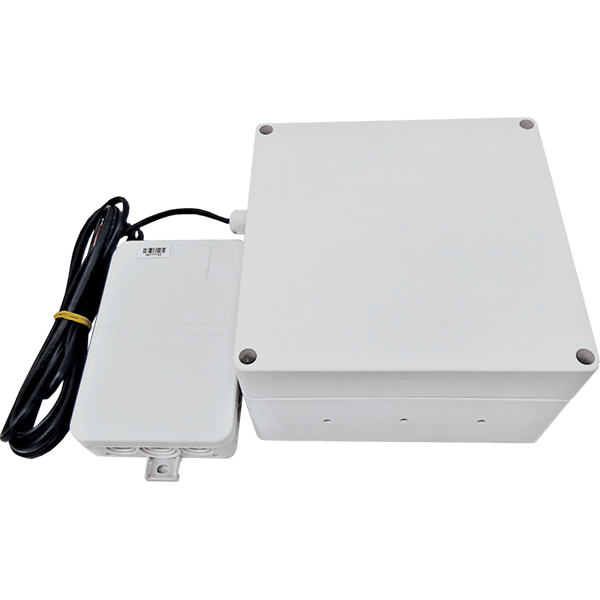

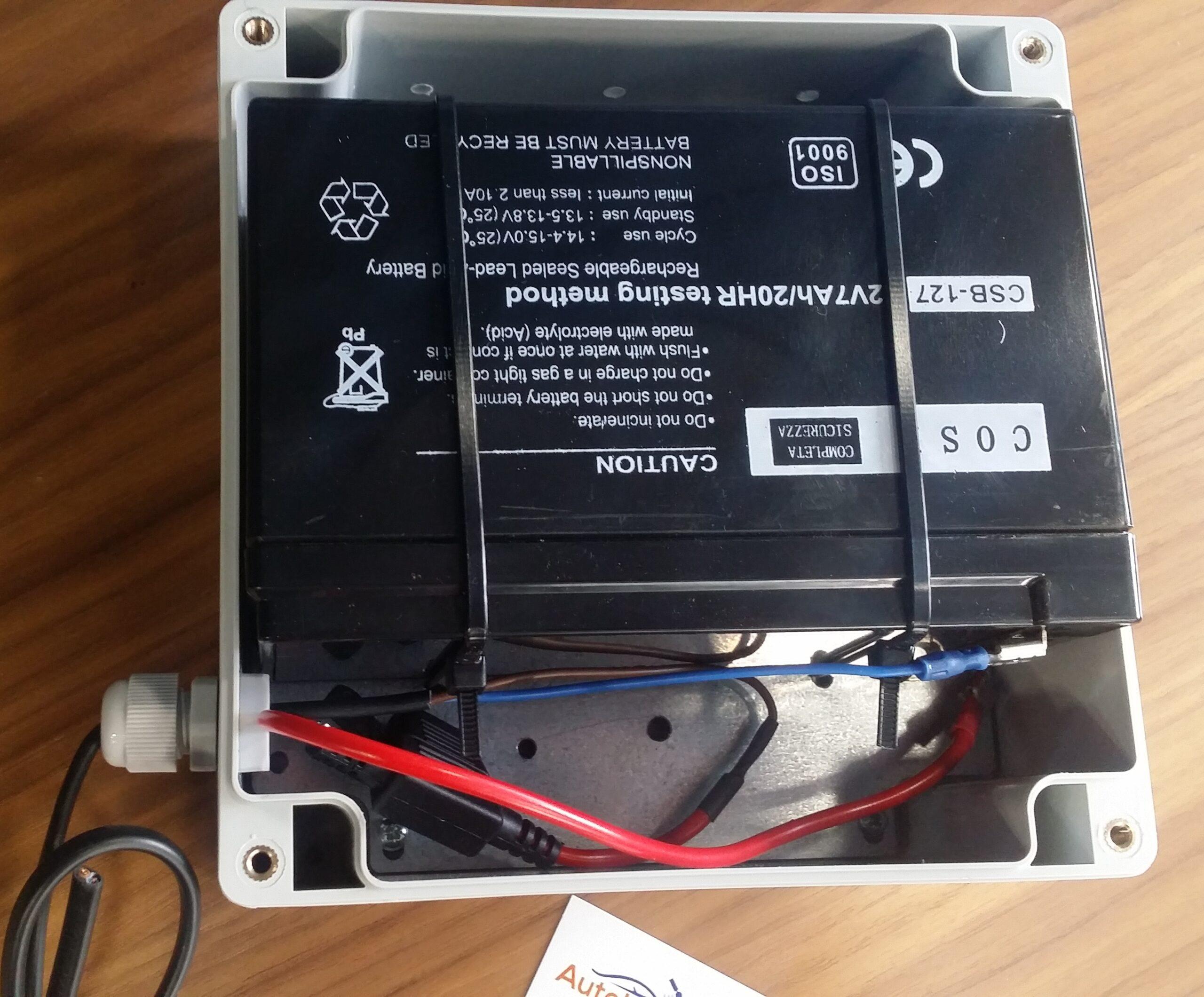

The Teltonika AFK 301 professional device consists of two parts which are in 2 waterproof boxes. The one box have inside the management board that connects to the Gps Tracker and the second box is inside the battery.
The set includes the battery and the management board, you do not include the gps tracker device.
Set with battery . Made in europe
Usage examples
- Freezer truck trailer
AKF301 receives power supply from truck +24V , then it is charging it’s external battery and supplying power voltage from truck battery to FM device.
When freezer is detached from truck, AKF301 is supplying power from freezer +12V battery to FM device. Additional external battery is not charged. - Regular or Platform truck trailer
AKF301 receives power supply from truck +24V , then it is charging it’s external battery and supplying power voltage from truck battery to FM device.
When trailer is detached from truck, AKF301 is supplying power from it’s additional external battery.
- Two AWO603 IP65 boxes with dimensions of 160x160x90 mm
- 2A fuse on +12V input line
- Two 2A RUEF self-resetting fuses on +24V line
- 3A fuse for additional external battery
- AKF301 PCB dimensions 60×112 mm
- Inputs:
- 12V input (+12V & GND)
- 24V input (+24V & GND)
- Additional 12V input for external battery (+12V & GND)
- Outputs:
- 13V output for FM device (+13V & GND)
- Power supply for FM device LEDindication
- Storage temperature from -25° C to +55° C
- Relative humidity from 0 to 90% (without condensate)
- +12V overvoltage protection
- Operation on external battery approximate time 48 hours*
- External battery full charge time 10 hours
* – This time can be drastically increased if Deep Sleep mode is used.
- Two AWO603 IP65 boxes with dimensions of 160x160x90 mm
- 2A fuse on +12V input line
- Two 2A RUEF self-resetting fuses on +24V line
- 3A fuse for additional external battery
- AKF301 PCB dimensions 60×112 mm
- Inputs:
- 12V input (+12V & GND)
- 24V input (+24V & GND)
- Additional 12V input for external battery (+12V & GND)
- Outputs:
- 13V output for FM device (+13V & GND)
- Power supply for FM device LEDindication
- Storage temperature from -25° C to +55° C
- Relative humidity from 0 to 90% (without condensate)
- +12V overvoltage protection
- Operation on external battery approximate time 48 hours*
- External battery full charge time 10 hours
* – This time can be drastically increased if Deep Sleep mode is used
Usage examples
- Freezer truck trailer
AKF301 receives power supply from truck +24V , then it is charging it’s external battery and supplying power voltage from truck battery to FM device.
When freezer is detached from truck, AKF301 is supplying power from freezer +12V battery to FM device. Additional external battery is not charged. - Regular or Platform truck trailer
AKF301 receives power supply from truck +24V , then it is charging it’s external battery and supplying power voltage from truck battery to FM device.
When trailer is detached from truck, AKF301 is supplying power from it’s additional external batt -
